Acrel DTSD1352 with Sungrow Inverter Application in Malaysia
Mr. Tim
November 30, 2021
1.Project Overview
Malaysian customers purchased inverter from sungrow, application in local photovoltaic projects, Customer require to monitor the power of the inverter and view the photovoltaic power data, the meter needs to meet the protocol docking with the sungrow inverter. Acrel provides the DTSD1352-C series of three-phase energy meters, which belongs to the sungrow power meter selection manual series and meets the sungrow communication protocol.
2.DTSD1352-C Series Three phase energy meter Din rail installed
DTSD1352-C is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on previous 12 months, checks the 31st harmonic content and the total harmonic content, realizes the remote communication and the remote control with switching input and relay output and boasts the alarm output. It is fitted with RS485 communication port and adapted to MODBUS-RTU. DTSD1352 can be used in all kinds of control systems, SCADA systems and energy management systems. All meters meet the related technical requirements of electronic power meter in the IEC62053-21、IEC62053-22 standards.
3.Model description

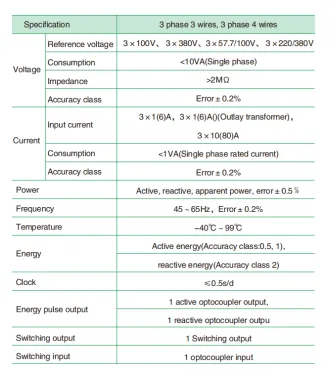

4.Technical Parameters
5.Wiring & Installation
6. Network Topology
7.Installation Site
