Application ADF400L Multi Circuits Energy Meter in Vietnam
Mr. Tim
December 9, 2021
Abstract:This article introduces the application of ADF400L Multi Circuits Energy Meter in Vietnam. ADF400L series multi-channel energy meter, through the way of combination module can realize largest 36 circuits single-phase or 12 circuits three-phase, CT connect or direct connect. this series of energy meter with high accuracy, high concentration, centralized management, installation flexibility, the advantages of each other noninterference by the community, schools, enterprises of all areas. The series of meters support prepaid power function.
1. Project overview:
The company is located in Vietnam.The customers need 2 channels three-phase direct access and 2 channels three-phase secondary access measurement. Acrel ADF400L series energy meters meet the user's application and conditions.

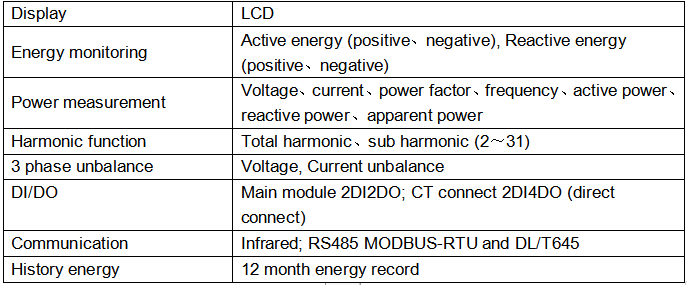

2.Product specification：

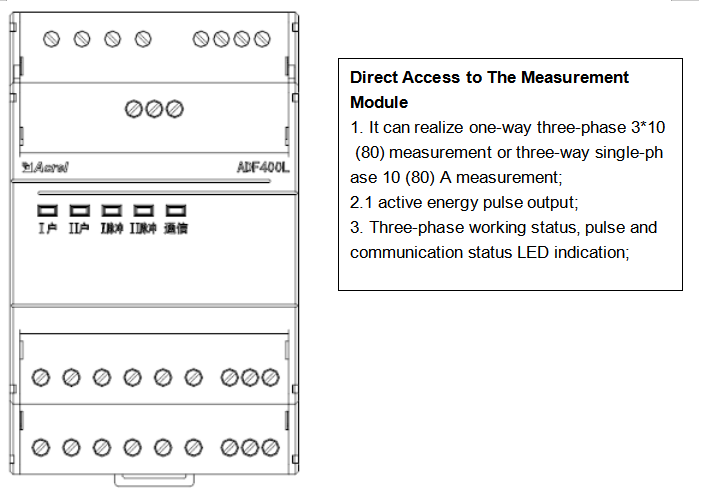

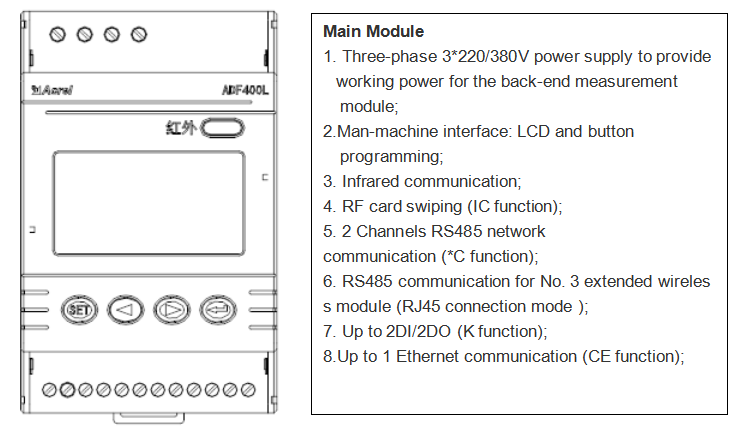

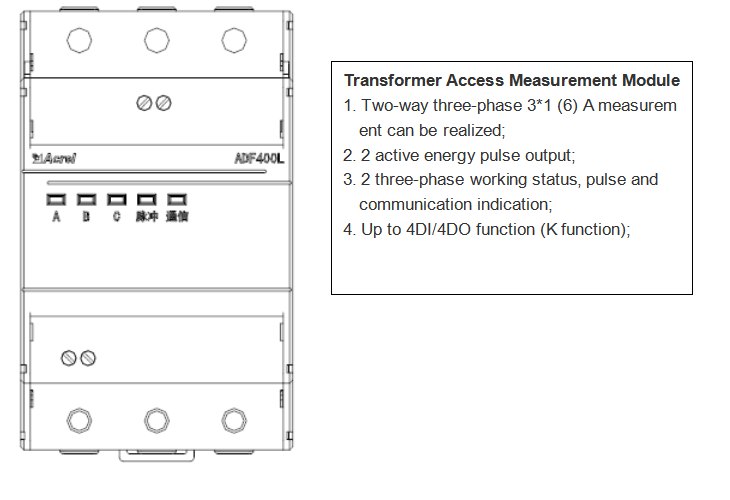

3.main function：

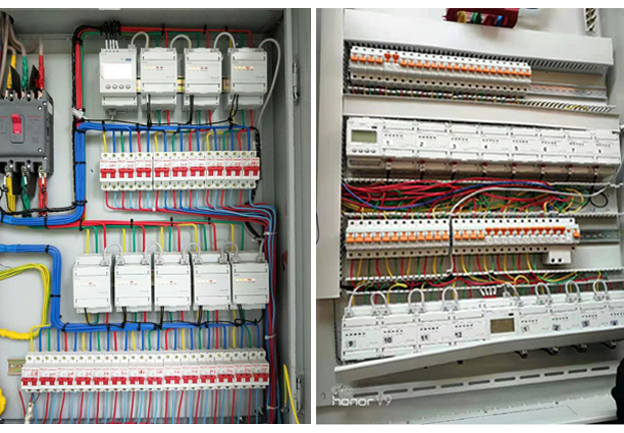

4.Application
ADF400L Multi Circuits Energy Meter can achieve up to 12 three-phase or 36 single-phase direct access measurement or 12 three-phase mutual inductor access measurement, a hybrid of direct access and mutual inductor access through module combination measurement method.
5 .Conclusion
ADF400L series of electric energy meters are popular among communities, schools, enterprises, etc. due to their high accuracy, centralized installation, centralized management, high installation flexibility, and non-interference.
Bibliography
1.Solutions For Enterprise Micro-grid System 2021.04
