Acrel Wireless Temperature Device in Pharmaceutical Company
Mr. Tim
January 4, 2022
Absrtact: Acrel ARTM series electrical contact wireless temperature measuring device is suitable for the temperature monitoring of high-voltage with high-current equipment to prevent high-load operation of the equipment, and excessive contact resistance may cause safety hazards. Acrel wireless electrical temperature measurement solution can realize real-time monitoring of the temperature of electrical contacts. If the temperature is abnormal, it will immediately send a signal to ensure the normal operation of the equipment.
1. Project Overview

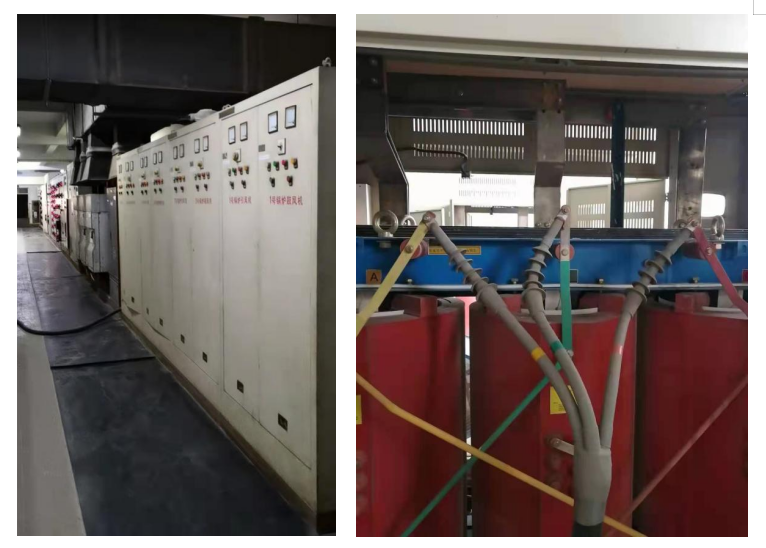

The cabinet in the power distribution room of the pharmaceutical company is compact, the voltage level is high, and the power cannot be directly taken, the shape and size are different, and the installation space is small. The environment is not convenient for laying communication cables. The switch cabinet has a shielding effect on signals. The temperature measurement points are scattered, there are certain requirements for the temperature measurement accuracy, and the temperature difference is large, and there is a safety hazard. Our measurement accuracy is ±1℃, which meets customer requirements.
2. Solution
2.1 The temperature sensor gets electricity through the alloy belt induction, which can match different shapes and sizes
2.2 470MHZ, strong penetrating power, no need to lay cables
2.3 The display unit can receive the temperature measurement data of the multi-sided cabinet
3.Network Topology

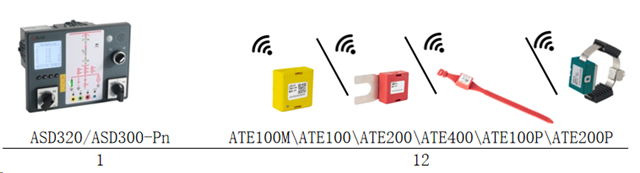

3.1 High & Low Voltage Cabinet

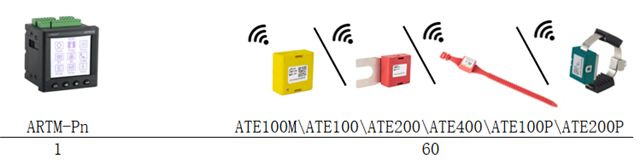

3.2 Single Cabinet On-site Display
.
3.3Centralized and In-site Display

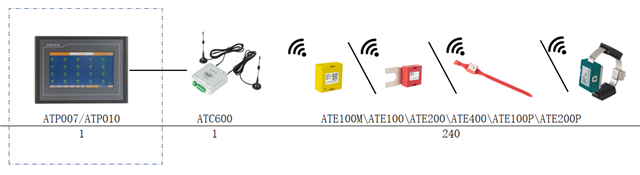

3.4 Long-distance On-site Centralized Display

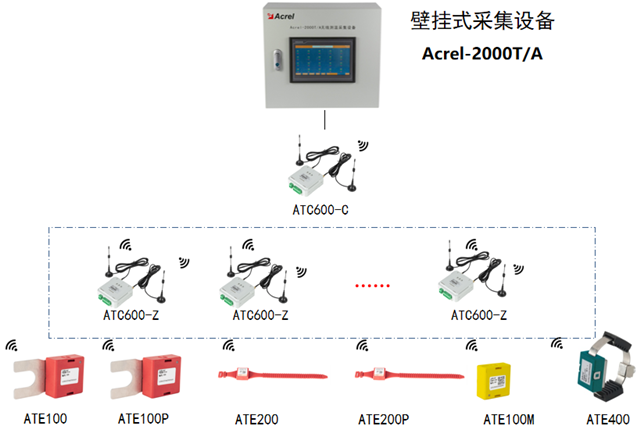

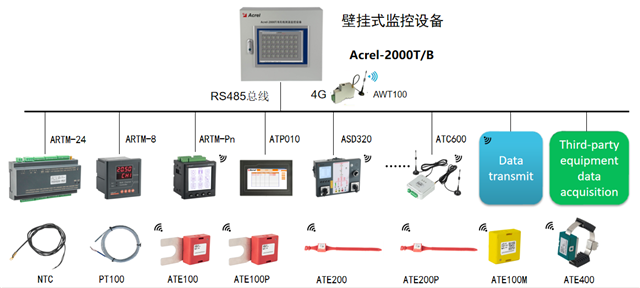

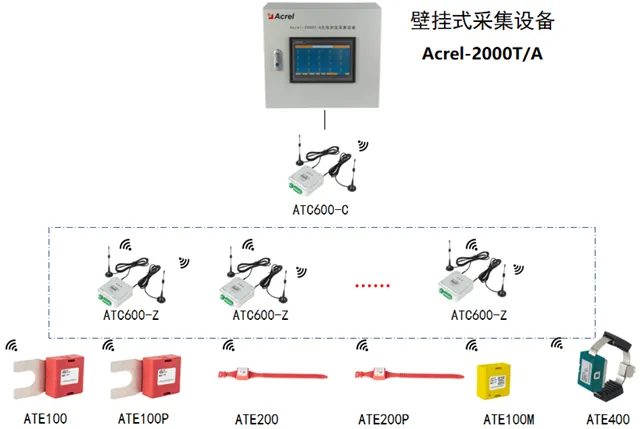

3.5 On-site Wall-mounted Centralized Display

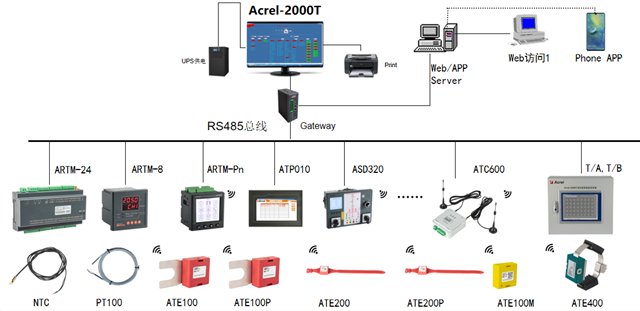

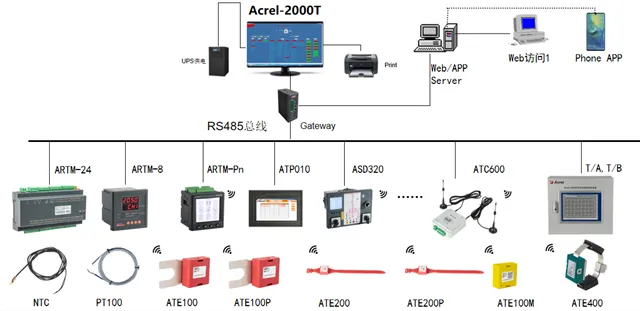

3.6 Wireless Temperature Monitoring System

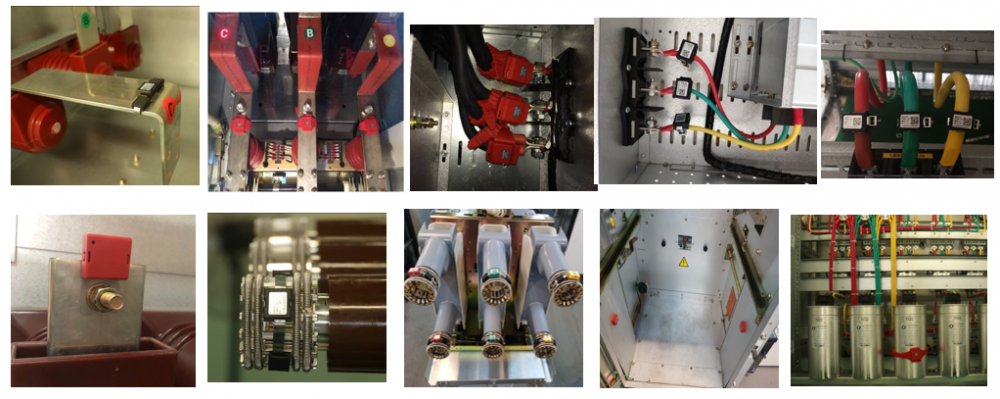

5.Installation Pictures
Bibliography
1.Solutions for enterprise micro-grid system
